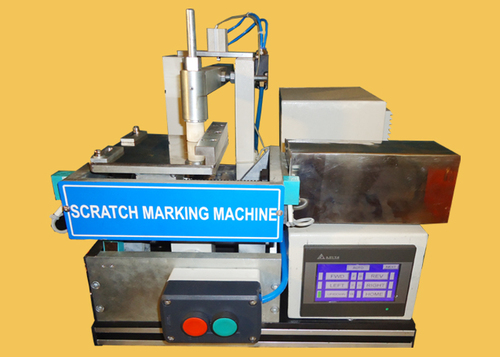

Scratch Marking Machine

Get a Price/Quote

MOQ : AS PER REQUIREMENT Piece

Scratch Marking Machine Specification

Voltage
220V

Motor Power
40W

Accuracy
0.02 mm

Frequency
50/60 Hz

Lubricating System
Self Lubricating

Power Rating
Single Phase

Connectivity Options
USB, RS232

Plastic Processed
ABS, PVC

Drive
Stepper Motor

Cooling System
Air Cooled

Noise Level
< 70 dB

Operating Temperature
5 to 45C

Production Capacity
60-90 parts/hour

Features
User-Friendly Operation, Low Maintenance, High Durability

Frame Type
Rigid Steel Frame

Machine Type
Electro-Pneumatic Marker

Model No
SM-200E

Control System
Microcontroller Based

Product Type
Scratch Marking Machine

Technology
Pneumatic & Electronic Integration

Power Source
Electric

Operating Type
Manual

Power
150W

Pressure
Adjustable up to 6 Bar

Surface Treatment
Powder Coated

Dimension (L*W*H)
500 x 250 x 350 mm

Weight (kg)
18 kg

Color
Blue-Grey

Usage & Applications
Metal, Plastic Engraving, Serial & Batch Marking

Scratch Marking Machine Trade Information

Payment Terms
Others

Supply Ability
Piece

Delivery Time
AS PER REQUIREMENT Week

Packaging Details
carton box

Main Domestic Market
Delhi

About Scratch Marking Machine

Since our inception in 1993, we manufacture and supply Scratch Marking Machine. The provided machine is manufactured by our deft professionals using pristine quality components with the aid of pioneering techniques in tandem with set industry standards. This machine is extensively demanded in the market for marking scratches on plastic parts in order to ensure its scratch resistance. Available in various technical specifications, the offered Scratch Marking Machine can be purchased from us at the most negotiable prices.

Features:

High operational fluency
Energy efficient
Easy to operate
Low maintenance

Salient Features:

Component clamping arrangement.
Servo based Scratch marking arrangement to ensure precise Scratch length(max.100 mm) and precise pitch distance (min.1to 20mm).
Pre determent scratch length.
Adjustable physical weight on arm.
Pneumatically controlled up-down movement of arm.
PLC based control panel with touch screen.

High-Precision Marking for Versatile Applications

The SM-200E excels in engraving metals and plastics, making it ideal for industries needing permanent serial, batch, or information marking. With adjustable pressure up to 6 bar, and marking speeds of up to 120 mm/s, it handles a broad range of materials and shapes. The rigid steel frame and self-lubricating mechanism guarantee consistent, high-quality marks every time, delivering productivity for demanding production lines.

User-Friendly Operation and Connectivity

Designed for ease of use, the machine features an intuitive keypad, LCD display, and support for both direct and software-based control. You can quickly import or export marking data using the USB or RS232 options, making integration into existing workflows straightforward. A comprehensive tool kit and user manual ensure smooth installation, training, and day-to-day operation.

FAQs of Scratch Marking Machine:

Q: How does the SM-200E ensure precise and reliable marking on different materials?

A: The SM-200E uses a combination of pneumatic and electronic integration, providing adjustable marking depth (0.010.5 mm) and pressure (up to 6 Bar) for accurate results on metals and plastics. Its XY linear guide and microcontroller-based control system guarantee consistent, high-resolution marking with 0.02 mm accuracy.

Q: What is the process for importing and exporting marking data?

A: You can easily import or export marking data via the USB port or RS232 connectivity. Supported by Windows-compatible software, this allows for smooth data transfer, making batch updates or custom mark creation efficient during various production cycles.

Q: When should I use the keypad versus the software for machine operation?

A: The keypad is ideal for quick, repetitive tasks or in environments where a PC connection isnt available. For complex designs, batch processing, or integrating variable data (like serial numbers), using Windows-based software provides advanced control and flexibility.

Q: Where can this marking machine be used?

A: The SM-200E is suitable for industrial environments in manufacturing plants, workshops, and production lines across automotive, electronics, metalworking, and plastics industries throughout India, where durable and traceable markings are essential.

Q: How user-friendly is the setup and operation of the SM-200E?

A: The SM-200E features a simple interface via its LCD display and keypad, supported by a detailed user manual and included tool kit. Its self-lubricating and low-maintenance design reduces downtime, facilitating quick setup and daily operation even for new operators.

Q: What are the main benefits of using the SM-200E for batch marking?

A: The SM-200E delivers high durability, low maintenance, and high marking accuracy, enabling production of 6090 parts per hour. It supports both serial and batch marking, which enhances traceability and productivity for manufacturers, while maintaining safety and efficiency.
