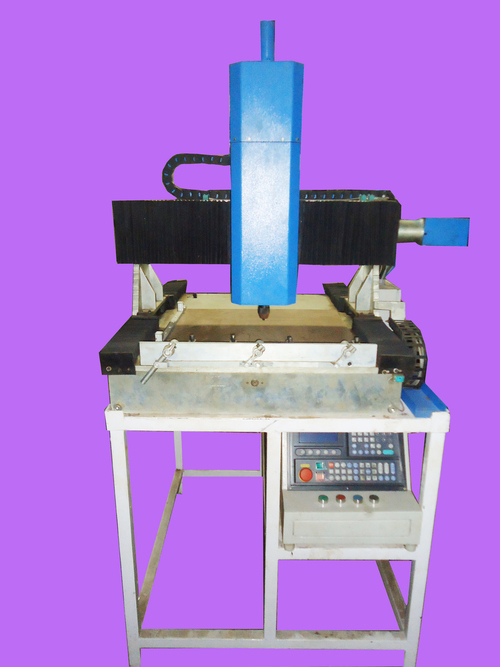

CNC Drilling Machine

Get a Price/Quote

MOQ : AS PER REQUIREMENT Piece

CNC Drilling Machine Specification

Production Capacity
120 holes/hour

Cooling System
Yes, integrated coolant pump

Frame Type
Heavy-duty welded steel

Features
High Speed Drilling, Touch Screen, Safety Guard, Auto-Tool Change

Frequency
50/60 Hz

Machine Type
CNC Drilling

Model No
CNC-DM180

Motor Power
3 HP

Noise Level
78 dB

Accuracy
0.05 mm

Drive
Servo drive

Lubricating System
Automatic central lubrication

Connectivity Options
USB, Ethernet

Voltage
220-380 V

Control System
PLC/CNC Panel

Power Rating
3.5 kVA

Operating Temperature
0C 45C

Product Type
CNC Drilling Machine

Technology
Computer Numerical Control (CNC)

Power Source
Electric

Operating Type
Automatic

Power
3 kW

Pressure
Hydraulic / Pneumatic-supported

Surface Treatment
Powder Coated

Dimension (L*W*H)
1800 x 1200 x 1700 mm

Weight (kg)
1200 kg

Color
Grey & Blue

Usage & Applications
Drilling on metal, wood, and plastic parts

Safety Features
Emergency Stop, Overload Protection

Max Table Load
500 kg

Table Size
1000 x 600 mm

Tool Magazine
8 positions (optional upgrade available)

Enclosure
Full Safety Enclosure

Max Drilling Diameter
32 mm

Display Type
Touch Screen LCD

Lighting
LED Worklight

Number of Axes
3 (X, Y, Z)

Data Interface
RS232/USB/Ethernet

Air Supply Requirement
5-7 bar

WorkingSpeed
80-3000 rpm

Spindle Travel
200 mm

Spindle Taper
BT30

Software Compatibility
G-code, ISO Standard

CNC Drilling Machine Trade Information

Payment Terms
Others

Supply Ability
Piece

Delivery Time
AS PER REQUIREMENT Week

Packaging Details
carton box

Main Domestic Market
Delhi

About CNC Drilling Machine

Being one of the foremost manufacturer and supplier, we are betrothed in offering CNC Drilling Machine to the clients. This machine is specially designed for the purpose of drilling without any hassle. Designed in adherence with set market standards, the offered machine is manufactured using fine quality components with the aid of ultra-contemporary techniques. Apart from this, we are providing this CNC Drilling Machine to our clients at market leading prices.

Features:

Low maintenance
Longer service life
Energy efficient
Superior performance

Salient Feature:

Maximum drilling capacity 10mm(20mm deep).
Spindle R.P.M maximum 4000.
Drill position accuracy .03mm.
Can load cad file directly.
Maximum travel 500- 500.

Advanced Precision Engineering

Engineered with a heavy-duty welded steel frame and servo drive, the CNC-DM180 guarantees high stability and minimal vibration, crucial for precision drilling. Its PLC/CNC control panel supports G-code and ISO programming, ensuring flawless integration into automated production workflows while maintaining a tight accuracy of 0.05 mm per operation.

User-Friendly Operation

Featuring a vibrant touch screen LCD, intuitive PLC controls, and automatic functions such as tool change, lubrication, and integrated cooling, the CNC Drilling Machine offers exceptional user convenience and minimal learning curve. The full safety enclosure and LED worklight further enhance operator safety and visibility, ensuring a secure and productive work environment.

Versatile Connectivity & Application

This CNC drilling machine is equipped with multiple data interfaces, including RS232, USB, and Ethernet, streamlining data transfer and remote operation capabilities. Its compatibility with G-code and ISO standards ensures seamless integration across various manufacturing software platforms, making it an excellent choice for diverse drilling applications on metal, wood, and plastics.

FAQs of CNC Drilling Machine:

Q: How does the CNC-DM180 ensure safety during operation?

A: Safety is paramount in the CNC-DM180 design, featuring a full safety enclosure, emergency stop button, overload protection, and reduced noise levels ( 78 dB). These measures protect operators from accidental contact, overloading, and excessive sound exposure, ensuring a safe working environment.

Q: What materials can be drilled with this CNC Drilling Machine?

A: The CNC-DM180 is engineered for drilling operations on a wide variety of materials, including metal, wood, and plastic parts. Its robust construction and adjustable speed settings allow it to efficiently handle different workpiece compositions.

Q: When is it beneficial to use the automatic tool change function?

A: The automatic tool changer (with 8 positions and optional upgrades) is beneficial when frequent tool changes are needed, such as during multi-step machining or varied production runs. This feature enhances productivity by reducing manual intervention and minimizing downtime.

Q: Where can I connect my computer or controller to this machine?

A: The CNC-DM180 offers convenient connectivity via USB, RS232, and Ethernet ports. These interfaces enable direct connection for programming, data transfer, or remote monitoring from compatible PCs or networked controllers.

Q: What is the process for setting up the machine before production?

A: Setup involves securing the workpiece on the 1000 x 600 mm table, selecting and loading the required tools in the magazine, connecting the air supply (57 bar), configuring the PLC/CNC panel, and uploading your drilling program via supported interfaces. The integrated lubrication and coolant systems will activate automatically once drilling begins.

Q: How does the cooling and lubrication system benefit the drilling process?

A: The integrated coolant pump and automatic central lubrication system maintain optimal temperature and reduce friction during drilling. This not only prolongs tool life but also ensures superior hole quality and consistent performance throughout long production runs.
