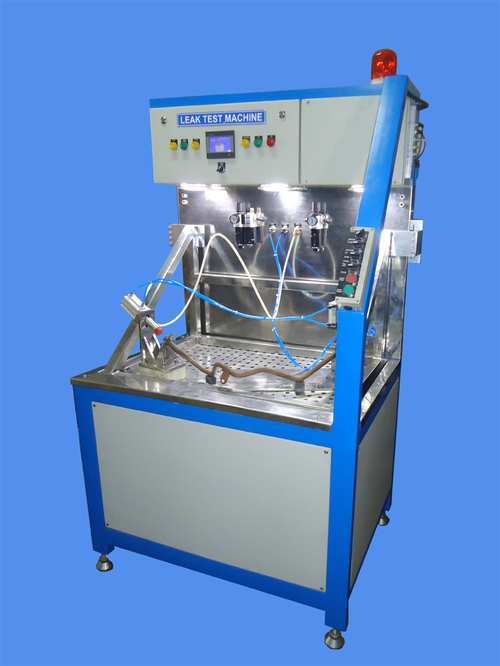

Leakage Testing Machine

Get a Price/Quote

MOQ : AS PER REQUIREMENT Piece

Leakage Testing Machine Specification

Accuracy
0.1 bar

Test Range
0.5 bar to 10 bar

Humidity
85% RH

Power Supply
AC Mains

Number of Specimens
1 specimen per cycle

Gas Pressure
Adjustable, up to 10 bar

Temperature
Room Temperature

Operating Temperature
5C to 45C

Test Material
Metals, Plastics, Composites

Sensor
Pressure Sensor (Digital)

Display
Digital LCD Display

Response Time
< 2 seconds

Specimen Size
Up to 300 mm length

Type
Bench Top

Use
Leakage Testing of Pipes, Valves, Fittings

Test Medium
Air or Nitrogen

Operating Voltage
220V AC, 50 Hz

Shell Material
Mild Steel with Powder Coating

Net Weight
Approx. 75 kg

Pedestal Size
Standard (customizable)

Port Size
1/2 inch

Leakage Testing Machine Trade Information

Payment Terms
Others

Supply Ability
Piece

Delivery Time
Week

Packaging Details
carton box

Main Domestic Market
Delhi

About Leakage Testing Machine

Since our establishment year 1993, our organization is able to manufacture and supply Leakage Testing Machine. The provided machine is designed to test the leakage of various items. This machine is manufactured under the stern supervision of our deft professionals using the best quality components with the aid of avant-garde techniques. In addition to this, our valued patrons, the offered Leakage Testing Machine can be availed from us at market leading prices.

Features:

High operational fluency
Lower maintenance
Energy efficient
Easy to operate

Salient Features:

Pneumatically controlled clamping/holding fixture to clamp/hold component.
Electronic regulator to set testing pressure from touch screen.
Maximum pressure range 16 bar for air/ 1200 bar for hydraulic.
Audio visual alarm for O.K/ NG component.
Touch screen to enter and display different parameter.
PLC based control panel

Efficient Leakage Detection

Designed specifically for pipe, valve, and fitting testing, this bench top machine operates within a test range of 0.5 bar to 10 bar. Its digital pressure sensor and LCD display provide quick, accurate readings, ensuring even minor leaks are detected promptly. The machine supports one specimen per cycle, streamlining precise industrial and laboratory quality control workflows.

Versatile Test Medium Compatibility

This leakage testing device can utilize either air or nitrogenoffering flexibility for different materials and safety requirements. Whether testing metals, plastics, or composites, users can confidently adjust the gas pressure for specific applications, optimizing both safety and performance outcomes.

Customizable Pedestal and Reliable Build

With a standard yet customizable pedestal size and a mild steel shell featuring powder coating, this machine is engineered for durability in demanding work environments. At approximately 75 kg, it balances stability and portability, making it an ideal choice for various bench top settings.

FAQs of Leakage Testing Machine:

Q: How does the Leakage Testing Machine detect leaks in pipes and fittings?

A: The machine utilizes a digital pressure sensor to monitor and detect pressure drops when the test medium (air or nitrogen) is introduced into the specimen under specified pressure. Any pressure loss is displayed on the digital LCD, signaling the presence of leakage.

Q: What materials can be tested with this leakage testing machine?

A: It is suitable for testing pipes, valves, and fittings made from metals, plastics, and composite materials, making the system highly versatile for various industries.

Q: When should I use air versus nitrogen as the test medium?

A: Air is suitable for most general applications, while nitrogen is recommended for sensitive or safety-critical components where oxidation or moisture must be minimized. The choice depends on the test objectives and material compatibility.

Q: Where is this machine typically installed or used?

A: This bench top leakage testing machine is ideal for use in quality control laboratories, manufacturing units, and industrial workshops, particularly in settings where reliable and accurate leak testing is critical.

Q: What is the process for conducting a leakage test using this machine?

A: To perform a test, securely place the specimen on the pedestal, select the desired gas and adjust the pressure. The digital sensor monitors the internal pressure, and the LCD display shows real-time results, confirming whether leakage is present.

Q: What benefits does this leakage testing machine provide compared to manual leak detection?

A: It offers increased accuracy (0.1 bar), fast response time (<2 seconds), and repeatable results, reducing the risk of undetected leaks and improving overall product quality with minimal operator intervention.

Q: Is the pedestal size fixed, or can it be customized for different specimen sizes?

A: The pedestal comes in a standard size but can be customized to accommodate various specimen dimensions, providing flexibility for different testing needs.
